| Boss Hoss' profilation of this bike |
| Features like a 2-speed transmission with reverse, inverted front suspension, vacuum formed body panels, investment cast structural frame components, and many other specially designed components have helped improve the rigidity and ride of the Boss Hoss motorcycles.
|
|
General information |
|
Motorcycle name
|

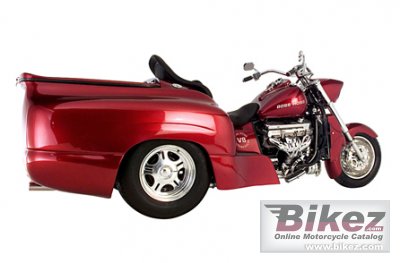

Boss Hoss BHC-9 ZZ4 Trike |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
5700.0 ccm (347.81 cubic inches) |
|
Engine type
|
V8, four-stroke |
|
Power output
|
355.0 HP (259.1 kW)) @ 5250 RPM |
|
Torque
|
549.2 Nm (56.0 kgf-m or 405.1 ft.lbs) @ 4200 RPM |
|
Fuel system
|
Injection. Holly 680 cfm Throttle Body |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
35.0° |
|
Front suspension
|
Inverted forks |
|
Front wheel travel
|
89 mm (3.5 inches) |
|
Rear suspension
|
Dual 17´ coilover shocks, single 17.5 inch rebound damper |
|
Front tire
|
130/90-16 |
|
Rear tire
|
275/60-15 |
|
Front brakes
|
Double disc. 4-piston calipers |
|
Rear brakes
|
Single disc. 4-piston calipers |
|
Physical measures and capacities |
|
Dry weight
|
680.4 kg (1,500.0 pounds) |
|
Power/weight ratio
|
0.5218 HP/kg |
|
Seat height
|
737 mm (29.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2921 mm (115.0 inches) |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
2070 mm (81.5 inches) |
|
Fuel capacity
|
32.17 litres (8.50 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, yellow |
|
Starter
|
Electric |
|
Comments
|
Trike. Three wheel bike. Also availble in a longer truck version. |
