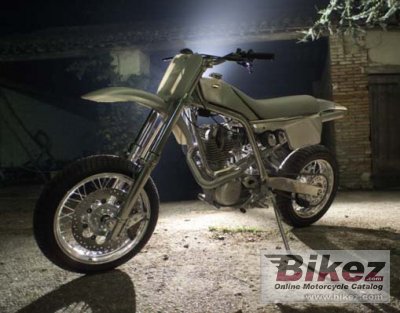

| Borile's profilation of this bike |
| GM head and cylinder, the mythica speedway engines, Mikuni TM 40 carburetor.
|
|
General information |
|
Motorcycle name
|
Borile B500MT |
|
Model year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
487.0 ccm (29.72 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
87.0 x 82.0 mm (3.4 x 3.2 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni TM 36 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Digital |
|
Lubrication system
|
Oil pump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Cradle of round tubes in 7020 alloy |
|
Rake (fork angle)
|
27.5° |
|
Front suspension
|
Marzocchi Magnum fork, Ø50 |
|
Rear suspension
|
Mono WP with no levers |
|
Front tire
|
120/70-17 |
|
Rear tire
|
150/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
315 mm (12.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
107.0 kg (235.9 pounds) |
|
Seat height
|
890 mm (35.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2120 mm (83.5 inches) |
|
Overall width
|
830 mm (32.7 inches) |
|
Ground clearance
|
250 mm (9.8 inches) |
|
Wheelbase
|
1500 mm (59.1 inches) |
|
Fuel capacity
|
8.00 litres (2.11 US gallons) |
|
Other specifications |
|
Comments
|
Italian made bike. |
