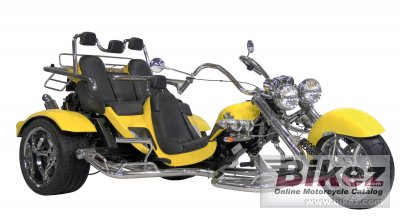

| Boom Trikes' profilation of this bike |
| The Family is based on the Big block framework of the Low Rider. The low seating position and the comfortable seats with side guidance submit comfortable and fatigue-free cruising. |
|
General information |
|
Model
|
Boom Trikes Muscle Family |
|
Year model
|
2011 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1596.0 ccm (97.39 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Effect
|
100.0 HP (73.0 kW)) |
|
Top speed
|
170.0 km/h (105.6 mph) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Gearbox
|
4-speed |
|
Driveline
|
VW-semi trailing transmission, 1 reverse / 4 forward gears |
|
Fuel consumption
|
9.00 litres/100 km (11.1 km/l or 26.14 mpg) |
|
Greenhouse gases
|
208.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Muscle 4 into 2, polished stainless steel |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Polished stainless steel fork |
|
Rear suspension
|
Alloy semi trailing link axle with adjustable suspension |
|
Front tire
|
170/60-17 |
|
Rear tire
|
295/50-15 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Wheels
|
Chromium alloy rims |
|
Seat
|
3-seats. Driver and passenger seats with side guidance. |
|
Physical measures and capacities |
|
Dry weight
|
700.0 kg (1,543.2 pounds) |
|
Power/weight ratio
|
0.1429 HP/kg |
|
Overall height
|
1480 mm (58.3 inches) |
|
Overall length
|
3655 mm (143.9 inches) |
|
Overall width
|
1830 mm (72.0 inches) |
|
Fuel capacity
|
38.00 litres (10.04 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, yellow, white, black, brown, dark green, light blue |
|
Starter
|
Electric |
|
Electrical
|
Three-phase generator. 12 V power outlet for navigation system. |
|
Comments
|
1.6 l Ford-Zetec-engine. German made trike. |
