General information |
|
Motorcycle name
|

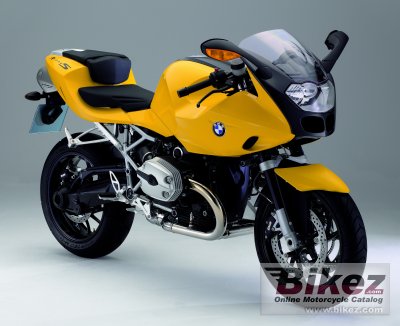

BMW R 1200 S |
|
Year of manufacture
|
2009 |
|
Type
|
Sport |
|
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1170.0 ccm (71.39 cubic inches) |
|
Type of engine
|
Two cylinder boxer, four-stroke |
|
Output
|
120.7 HP (88.1 kW)) @ 8250 RPM |
|
Torque
|
112.0 Nm (11.4 kgf-m or 82.6 ft.lbs) @ 6800 RPM |
|
Top speed
|
200.0 km/h (124.3 mph) |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
101.0 x 73.0 mm (4.0 x 2.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single dry plate clutch, hydraulically operated |
|
Fuel consumption
|
4.30 litres/100 km (23.3 km/l or 54.70 mpg) |
|
Greenhouse gases
|
99.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Closed-loop 3-way catalytic converter, emission standard EU-3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Three-section frame consisting of front, middle and rear sections, load bearing engine-gearbox unit |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
87 mm (3.4 inches) |
|
Front suspension
|
BMW Motorrad Telelever |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZX17 |
|
Rear tire
|
180/55-ZX17 |
|
Front brakes
|
Double disc. Optional ABS |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Optional ABS |
|
Diameter
|
265 mm (10.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
190.0 kg (418.9 pounds) |
|
Weight incl. oil, gas, etc
|
213.0 kg (469.6 pounds) |
|
Power/weight ratio
|
0.6352 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1177 mm (46.3 inches) |
|
Overall length
|
2151 mm (84.7 inches) |
|
Overall width
|
870 mm (34.3 inches) |
|
Wheelbase
|
1487 mm (58.5 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Reserve fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Color options
|
Shine yellow, Titan silver/magma red, Night black, White aluminium |
|
Starter
|
Electric |
