General information |
|
Model name
|

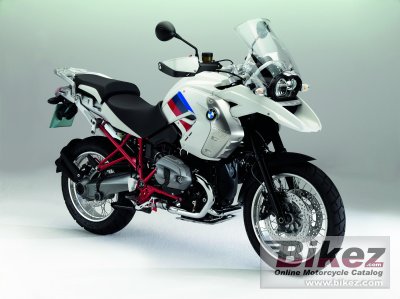

BMW R 1200 GS Rallye |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1170.0 ccm (71.39 cubic inches) |
|
Engine type
|
Two cylinder boxer, two-stroke |
|
Power
|
48.0 HP (35.0 kW)) @ 7750 RPM |
|
Torque
|
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 6000 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
101.0 x 73.0 mm (4.0 x 2.9 inches) |
|
Fuel system
|
Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single dry plate clutch, hydraulically operated |
|
Fuel consumption
|
4.60 litres/100 km (21.7 km/l or 51.13 mpg) |
|
Greenhouse gases
|
106.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Closed-loop 3-way catalytic converter |
|
Exhaust system
|
Chromed Exhaust Pipe |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Two-section frame consisting of front and rear sections, load- bearing engine-gearbox unit |
|
Rake (fork angle)
|
24.8° |
|
Trail
|
89 mm (3.5 inches) |
|
Front suspension
|
BMW Motorrad Telelever |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
|
Rear wheel travel
|
220 mm (8.7 inches) |
|
Front tire
|
110/80-R19 |
|
Rear tire
|
150/70-R17 |
|
Front brakes
|
Double disc. Optional integral ABS. Can be switched off. |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc. Optional integral ABS. Can be switched off. |
|
Diameter
|
265 mm (10.4 inches) |
|
Wheels
|
Cross-spoke wheels |
|
Seat
|
Two section dual seat with variable height rider´s seat |
|
Physical measures and capacities |
|
Dry weight
|
223.0 kg (491.6 pounds) |
|
Weight incl. oil, gas, etc
|
256.0 kg (564.4 pounds) |
|
Power/weight ratio
|
0.2152 HP/kg |
|
Seat height
|
890 mm (35.0 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
810 mm (31.9 inches) If adjustable, highest setting. |
|
Overall length
|
2240 mm (88.2 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
20.00 litres (5.28 US gallons) |
|
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Other specifications |
|
Color options
|
Silver/red/blue |
|
Starter
|
Electric |
|
Electrical
|
12 V / 14 Ah, maintenance-free battery. |
