General information |
|
Motorcycle name
|

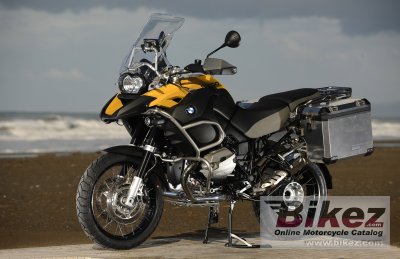

BMW R 1200 GS Adventure |
|
Year model
|
2010 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1170.0 ccm (71.39 cubic inches) |
|
Type of engine
|
Two cylinder boxer, two-stroke |
|
Effect
|
103.3 HP (75.4 kW)) @ 7500 RPM |
|
Torque
|
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 5750 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
101.0 x 73.0 mm (4.0 x 2.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single dry plate clutch, hydraulically operated |
|
Fuel consumption
|
4.60 litres/100 km (21.7 km/l or 51.13 mpg) |
|
Greenhouse gases
|
106.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Closed-loop 3-way catalytic converter, emission standard EU-3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Two-section frame consisting of front and rear sections, load- bearing engine-gearbox unit |
|
Rake (fork angle)
|
24.8° |
|
Trail
|
89 mm (3.5 inches) |
|
Front suspension
|
BMW Motorrad Telelever |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
|
Rear wheel travel
|
220 mm (8.7 inches) |
|
Front tire
|
110/80-R19 |
|
Rear tire
|
150/70-R17 |
|
Front brakes
|
Double disc |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
265 mm (10.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
223.0 kg (491.6 pounds) |
|
Weight incl. oil, gas, etc
|
256.0 kg (564.4 pounds) |
|
Power/weight ratio
|
0.4630 HP/kg |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2240 mm (88.2 inches) |
|
Overall width
|
990 mm (39.0 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
33.00 litres (8.72 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Yellow, gray |
|
Starter
|
Electric |
