General information |
|
Motorcycle name
|

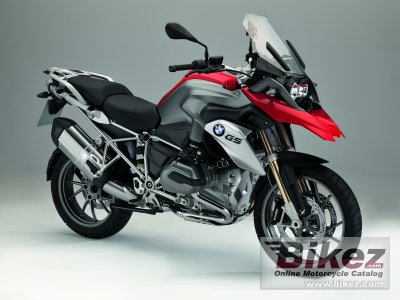

BMW R 1200 GS |
|
Model year
|
2013 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1170.0 ccm (71.39 cubic inches) |
|
Engine type
|
Two cylinder boxer, two-stroke |
|
Power output
|
123.4 HP (90.1 kW)) @ 7750 RPM |
|
Torque
|
124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 6500 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
101.0 x 73.0 mm (4.0 x 2.9 inches) |
|
Fuel system
|
Injection. Electronic intake pipe injection / BMS-K+ digital engine management with electromotive throttle actuator |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Oil lubricated clutch, hydraulically operated |
|
Driveline
|
Constant mesh |
|
Fuel consumption
|
4.13 litres/100 km (24.2 km/l or 56.95 mpg) |
|
Greenhouse gases
|
95.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Closed-loop 3-way catalytic converter, emission standard EU-3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Two-section frame, bolted on rear frame, load-bearing engine |
|
Rake (fork angle)
|
25.5° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
BMW Motorrad Telelever |
|
Front wheel travel
|
191 mm (7.5 inches) |
|
Rear suspension
|
Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
|
Rear wheel travel
|
201 mm (7.9 inches) |
|
Front tire
|
120/70-19 |
|
Rear tire
|
170/60-17 |
|
Front brakes
|
Double disc. Floating discs. Four-piston calipers. ABS. |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc. Floating disc. Two-piston calipers. ABS: |
|
Diameter
|
276 mm (10.9 inches) |
|
Wheels
|
Cast aluminium wheels |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
238.1 kg (525.0 pounds) |
|
Seat height
|
851 mm (33.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1450 mm (57.1 inches) |
|
Overall length
|
2210 mm (87.0 inches) |
|
Overall width
|
953 mm (37.5 inches) |
|
Wheelbase
|
1506 mm (59.3 inches) |
|
Fuel capacity
|
20.06 litres (5.30 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, white, grey |
|
Starter
|
Electric |
|
Electrical
|
12 V / 11,8 Ah, maintenance-free battery. |
