| General information |
|---|

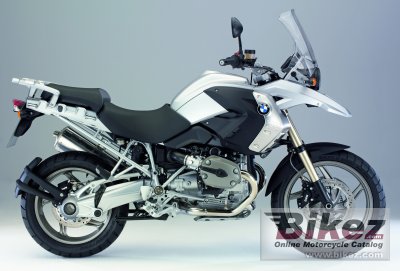

| Model: | BMW R 1200 GS |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | 3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 1170.0 ccm (71.39 cubic inches) |
| Engine type: | Two cylinder boxer, four-stroke |
| Power: | 103.3 HP (75.4 kW)) @ 7500 RPM |
| Torque: | 115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 5750 RPM |
| Top speed: | 200.0 km/h (124.3 mph) |
| Compression: | 12.0:1 |
| Bore x stroke: | 101.0 x 73.0 mm (4.0 x 2.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition |
| Fuel control: | Single Overhead Cams (SOHC) |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Single dry plate clutch, hydraulically operated |
| Fuel consumption: | 4.30 litres/100 km (23.3 km/l or 54.70 mpg) |
| Greenhouse gases: | 99.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Two-section frame consisting of front and rear sections, load- bearing engine-gearbox unit |
| Rake (fork angle): | 25.7° |
| Trail: | 101 mm (4.0 inches) |
| Front suspension: | BMW Motorrad Telelever |
| Front wheel travel: | 190 mm (7.5 inches) |
| Rear suspension: | Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
| Rear wheel travel: | 200 mm (7.9 inches) |
| Front tyre: | 110/80-19 |
| Rear tyre: | 150/70-17 |
| Front brakes: | Double disc. Optional ABS, can be switched off |
| Diameter: | 305 mm (12.0 inches) |
| Rear brakes: | Single disc. Optional ABS, can be switched off |
| Diameter: | 265 mm (10.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 203.0 kg (447.5 pounds) |
| Weight incl. oil, gas, etc: | 229.0 kg (504.9 pounds) |
| Power/weight ratio: | 0.5086 HP/kg |
| Overall height: | 1450 mm (57.1 inches) |
| Overall length: | 2210 mm (87.0 inches) |
| Overall width: | 23749 mm (935.0 inches) |
| Wheelbase: | 1507 mm (59.3 inches) |
| Fuel capacity: | 20.00 litres (5.28 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Color options: | Slate grey matallic matt, Namibia orange |
| Starter: | Electric |
