General information |
|
Motorcycle name
|

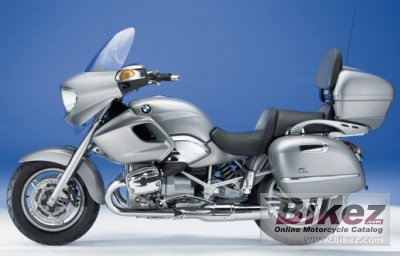

BMW R 1200 CL |
|
Year model
|
2004 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1170.0 ccm (71.39 cubic inches) |
|
Type of engine
|
Two cylinder boxer, four-stroke |
|
Effect
|
61.0 HP (44.5 kW)) @ 5000 RPM |
|
Torque
|
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3000 RPM |
|
Top speed
|
165.0 km/h (102.5 mph) |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
101.0 x 73.0 mm (4.0 x 2.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Fuel consumption
|
5.10 litres/100 km (19.6 km/l or 46.12 mpg) |
|
Greenhouse gases
|
118.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Three-section composite frame consisting of front and rear section, load bearing engine. |
|
Front suspension
|
BMW Motorrad Telelever; stanchion diameter 35 mm, central strut |
|
Front wheel travel
|
144 mm (5.7 inches) |
|
Rear suspension
|
Die-cast steel single-sided swinging arm with BMW Motorrad Monolever; WAD strut (travel-related damping), spring pre-load adjustable to continuously variable levels by means of hydraulic handwheel |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
150/80-VR16 |
|
Rear tire
|
170/80-VR15 |
|
Front brakes
|
Double disc |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
285 mm (11.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
288.0 kg (634.9 pounds) |
|
Power/weight ratio
|
0.2118 HP/kg |
|
Seat height
|
745 mm (29.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1435 mm (56.5 inches) |
|
Overall length
|
2415 mm (95.1 inches) |
|
Overall width
|
1075 mm (42.3 inches) |
|
Wheelbase
|
1641 mm (64.6 inches) |
|
Fuel capacity
|
17.50 litres (4.62 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
