General information |
|
Model
|

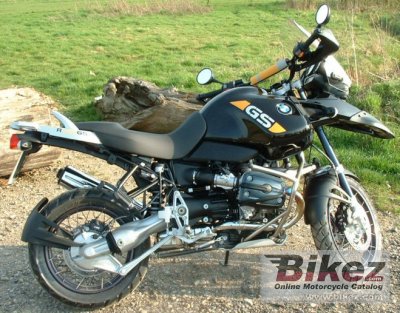

BMW R 1150 GS Adventure |
|
Year of manufacture
|
2005 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1130.0 ccm (68.95 cubic inches) |
|
Type of engine
|
Two cylinder boxer, four-stroke |
|
Output
|
83.8 HP (61.2 kW)) @ 6750 RPM |
|
Torque
|
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 5250 RPM |
|
Top speed
|
192.0 km/h (119.3 mph) |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
101.0 x 70.5 mm (4.0 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic intake pipe injection/digital engine management: Bosch Motronic MA 2.4 with overrun fuel cut-off, twin spark ignition |
|
Ignition
|
Electronic ignition MA 2.2 Bosch Motronic |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Single-disc dry clutch, hydraulically operated |
|
Fuel consumption
|
4.50 litres/100 km (22.2 km/l or 52.27 mpg) |
|
Greenhouse gases
|
104.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Three-section composite frame consisting of front and rear section, load bearing engine. |
|
Rake (fork angle)
|
26.2° |
|
Trail
|
121 mm (4.8 inches) |
|
Front suspension
|
BMW Motorrad Telelever |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever |
|
Rear wheel travel
|
220 mm (8.7 inches) |
|
Front tire
|
110/80-ZR19 |
|
Rear tire
|
150/70-ZR17 |
|
Front brakes
|
Double disc. Four-piston calipers. |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Double disc. Two-piston calipers. |
|
Diameter
|
276 mm (10.9 inches) |
|
Wheels
|
Cross spoke wheels |
|
Physical measures and capacities |
|
Dry weight
|
232.0 kg (511.5 pounds) |
|
Weight incl. oil, gas, etc
|
253.0 kg (557.8 pounds) |
|
Power/weight ratio
|
0.3613 HP/kg |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1435 mm (56.5 inches) |
|
Overall length
|
2180 mm (85.8 inches) |
|
Overall width
|
980 mm (38.6 inches) |
|
Wheelbase
|
1501 mm (59.1 inches) |
|
Fuel capacity
|
30.00 litres (7.93 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
ABS brakes. |
