General information |
|
Model
|

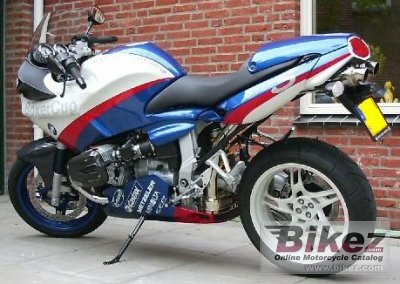

BMW R 1100 S BoxerCup Replica |
|
Year of manufacture
|
2004 |
|
Type
|
Sport |
|
Rating
|
4.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1085.0 ccm (66.21 cubic inches) |
|
Type of engine
|
Two cylinder boxer, four-stroke |
|
Output
|
96.6 HP (70.5 kW)) @ 7250 RPM |
|
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 5750 RPM |
|
Top speed
|
200.0 km/h (124.3 mph) |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
99.0 x 70.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Fuel consumption
|
4.70 litres/100 km (21.3 km/l or 50.05 mpg) |
|
Greenhouse gases
|
109.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Three-section composite frame consisting of front and rear section, load bearing engine |
|
Front suspension
|
BMW Motorrad Telelever; stanchion diameter 35 mm, central spring strut, rebound damping adjustable |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Die-cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Double disc |
|
Diameter
|
276 mm (10.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
208.0 kg (458.6 pounds) |
|
Weight incl. oil, gas, etc
|
229.0 kg (504.9 pounds) |
|
Power/weight ratio
|
0.4642 HP/kg |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
845 mm (33.3 inches) If adjustable, highest setting. |
|
Overall height
|
1160 mm (45.7 inches) |
|
Overall length
|
2180 mm (85.8 inches) |
|
Overall width
|
895 mm (35.2 inches) |
|
Wheelbase
|
1478 mm (58.2 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
