BMW's profilation of this bike |
Are you a sportsman or a sportswoman? Help yourself - the BMW R 1100 is a fiery Sports Boxer - muscular in appearance with powerful engine performance. It is just as convincing on the Motodrom at Hockenheim as on the winding mountain passes in the Dolomites. |
General information |
Model
|

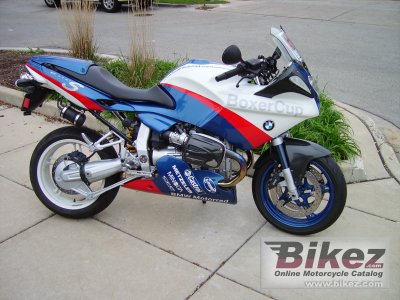

BMW R 1100 S |
Year model
|
2005 |
Type
|
Sport touring |
Rating
|
3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Engine size
|
1085.0 ccm (66.21 cubic inches) |
Type of engine
|
Two cylinder boxer, four-stroke |
Effect
|
96.6 HP (70.5 kW)) @ 7500 RPM |
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 5750 RPM |
Compression
|
11.3:1 |
Bore x stroke
|
99.0 x 70.5 mm (3.9 x 2.8 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Electronic intake pipe injection/digital engine management: Bosch Motronic MA 2.4 with overrun fuel cut-off, twin spark ignition |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Oil & air |
Gearbox
|
6-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Clutch
|
Single-disc dry clutch, hydraulically operated |
Fuel consumption
|
4.30 litres/100 km (23.3 km/l or 54.70 mpg) |
Greenhouse gases
|
99.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Three-section composite frame consisting of front and rear section, load bearing engine. |
Rake (fork angle)
|
25.0° |
Trail
|
100 mm (3.9 inches) |
Front suspension
|
BMW Motorrad Telelever |
Front wheel travel
|
35 mm (1.4 inches) |
Rear suspension
|
Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever |
Rear wheel travel
|
135 mm (5.3 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
170/60-ZR17 |
Front brakes
|
Double disc |
Diameter
|
305 mm (12.0 inches) |
Rear brakes
|
Double disc |
Diameter
|
276 mm (10.9 inches) |
Physical measures and capacities |
Dry weight
|
208.0 kg (458.6 pounds) |
Weight incl. oil, gas, etc
|
229.0 kg (504.9 pounds) |
Power/weight ratio
|
0.4642 HP/kg |
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
Overall height
|
1160 mm (45.7 inches) |
Overall length
|
2180 mm (85.8 inches) |
Overall width
|
880 mm (34.6 inches) |
Wheelbase
|
1478 mm (58.2 inches) |
Fuel capacity
|
18.00 litres (4.76 US gallons) |
Other specifications |
Starter
|
Electric |
Comments
|
ABS brakes. |
