General information |
|
Model name
|

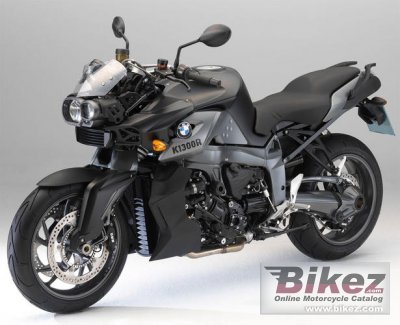

BMW K 1300 R Dynamic |
|
Model year
|
2012 |
|
Category
|
Naked bike |
|
Rating
|
3.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1293.0 ccm (78.90 cubic inches) |
|
Engine type
|
In-line four, four-stroke |
|
Power output
|
170.3 HP (124.3 kW)) @ 9250 RPM |
|
Torque
|
140.0 Nm (14.3 kgf-m or 103.3 ft.lbs) @ 8250 RPM |
|
Compression
|
13.0:1 |
|
Bore x stroke
|
80.0 x 64.3 mm (3.1 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Multiple-disc clutch in oil bath, hydraulically operated |
|
Fuel consumption
|
5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
|
Greenhouse gases
|
116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
Closed loop 3 way catalytic converter with oxygen sensor. |
|
Exhaust system
|
Stainless steel exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Bridge-type, cast aluminium, load bearing engine |
|
Rake (fork angle)
|
29.6° |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
BMW Motorrad Duolever |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
|
Rear wheel travel
|
135 mm (5.3 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Optional ABS |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Optional ABS |
|
Diameter
|
265 mm (10.4 inches) |
|
Seat
|
One piece dual seat |
|
Physical measures and capacities |
|
Dry weight
|
217.0 kg (478.4 pounds) |
|
Weight incl. oil, gas, etc
|
243.0 kg (535.7 pounds) |
|
Power/weight ratio
|
0.7848 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
790 mm (31.1 inches) If adjustable, highest setting. |
|
Overall height
|
1095 mm (43.1 inches) |
|
Overall length
|
2228 mm (87.7 inches) |
|
Overall width
|
856 mm (33.7 inches) |
|
Wheelbase
|
1585 mm (62.4 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Color options
|
Silver/gray |
|
Starter
|
Electric |
|
Electrical
|
12 V / 14 Ah, maintenance-free battery. |
|
Comments
|
On Board Computer, Heated Grips, Sport Windshield, LED Indicators, Gear Shift Assist, ESA 2 (Electronic Suspension Adjustment 2). One key system for ignition, steering, fuel filler cap and seat lock. |
