General information |
---|

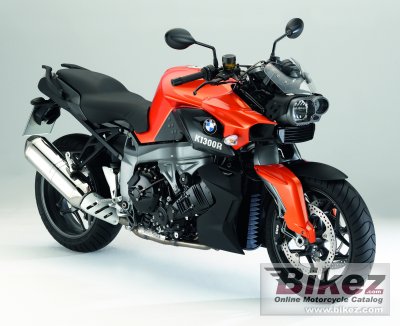

Model | BMW K 1300 R |
Year | 2010 |
Category | Sport |
Rating | 3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 1293.0 ccm (78.90 cubic inches) |
Engine type | In-line four, four-stroke |
Power | 170.3 HP (124.3 kW)) @ 9250 RPM |
Torque | 140.0 Nm (14.3 kgf-m or 103.3 ft.lbs) @ 8250 RPM |
Compression | 13.0:1 |
Bore x stroke | 80.0 x 64.3 mm (3.1 x 2.5 inches) |
Valves per cylinder | 4 |
Fuel system | Injection. Electronic intake pipe injection/digital engine management including knock sensor (BMS-K) |
Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
Cooling system | Liquid |
Gearbox | 6-speed |
Transmission type | Shaft drive (cardan) (final drive) |
Clutch | Multiple-disc clutch in oil bath, hydraulically operated |
Fuel consumption | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
Greenhouse gases | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system | Closed-loop 3-way catalytic converter, emission standard EU-3 |
Chassis, suspension, brakes and wheels |
---|
Frame type | Bridge-type, cast aluminium, load bearing engine |
Rake (fork angle) | 29.6° |
Trail | 104 mm (4.1 inches) |
Front suspension | BMW Motorrad Duolever |
Front wheel travel | 115 mm (4.5 inches) |
Rear suspension | Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
Rear wheel travel | 135 mm (5.3 inches) |
Front tire | 120/70-ZR17 |
Rear tire | 180/55-ZR17 |
Front brakes | Double disc |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc |
Diameter | 265 mm (10.4 inches) |
Physical measures and capacities |
---|
Dry weight | 217.0 kg (478.4 pounds) |
Weight incl. oil, gas, etc | 243.0 kg (535.7 pounds) |
Power/weight ratio | 0.7848 HP/kg |
Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
Overall height | 1095 mm (43.1 inches) |
Overall length | 2228 mm (87.7 inches) |
Overall width | 856 mm (33.7 inches) |
Wheelbase | 1585 mm (62.4 inches) |
Fuel capacity | 19.00 litres (5.02 US gallons) |
Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
Other specifications |
---|
Color options | Orange, silk, light gray |
