| General information |
|---|

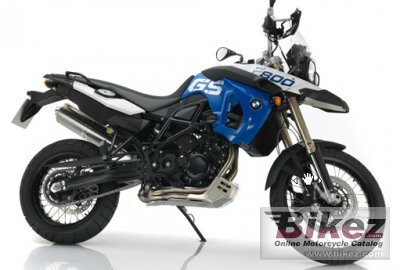

| Model | BMW F 800 GS Trophy |
| Year | 2012 |
| Category | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 798.0 ccm (48.69 cubic inches) |
| Engine type | Twin, four-stroke |
| Power | 48.0 HP (35.0 kW)) @ 7500 RPM |
| Torque | 83.0 Nm (8.5 kgf-m or 61.2 ft.lbs) @ 5750 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 82.0 x 75.6 mm (3.2 x 3.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic intake pipe injection / digital engine management (BMS-K) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiple-disc clutch in oil bath, mechanically operated |
| Driveline | Endless O-ring chain with shock damping in rear wheel hub |
| Fuel consumption | 3.80 litres/100 km (26.3 km/l or 61.90 mpg) |
| Greenhouse gases | 88.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission details | Closed-loop 3-way catalytic converter, emission standard EU-3 |
| Exhaust system | Complete stainless steel exhaust system |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Tubular steel space frame, load-bearing engine |
| Rake (fork angle) | 26.0° |
| Trail | 117 mm (4.6 inches) |
| Front suspension | Upside-down front fork, 45 mm |
| Front wheel travel | 230 mm (9.1 inches) |
| Rear suspension | Double sided aluminium swing arm, WAD strut (travel related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable |
| Rear wheel travel | 215 mm (8.5 inches) |
| Front tire | 90/90-V21 |
| Rear tire | 150/70-V17 |
| Front brakes | Double disc. Optional ABS. Can be switched off. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. Optional ABS. Can be switched off. |
| Diameter | 265 mm (10.4 inches) |
| Wheels | Wire spoke |
| Seat | One piece dual seat |
| Physical measures and capacities |
|---|
| Dry weight | 185.0 kg (407.9 pounds) |
| Weight incl. oil, gas, etc | 207.0 kg (456.4 pounds) |
| Power/weight ratio | 0.2595 HP/kg |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Alternate seat height | 765 mm (30.1 inches) If adjustable, highest setting. |
| Overall height | 1350 mm (53.1 inches) |
| Overall length | 2320 mm (91.3 inches) |
| Wheelbase | 1578 mm (62.1 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
| Other specifications |
|---|
| Color options | Desert Blue non-metallic/Alpine White |
| Starter | Electric |
| Comments | Windshield |
