| Blata's profilation of this bike |
| The latest Origami B2 is fully equipped with the next generation technology. This includes both brand new and improved parts such as the hydraulic brakes, lightweight triple clamps, aluminium handle bars, steering damper and high-strength, aircraft standard aluminium alloy rear sprocket. |
|
General moped information |
|
Model
|

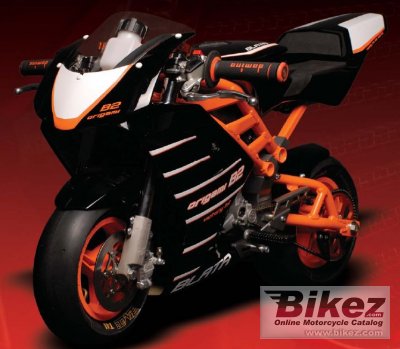

Blata Origami B2 Victory |
|
Year
|
2009 |
|
Category
|
Minibike, sport |
|
Rating
|
2.5 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
39.8 ccm (2.43 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
14.3 HP (10.5 kW)) @ 11700 RPM |
|
Torque
|
8.6 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 10900 RPM |
|
Fuel system
|
Carburettor. PHVA 19 Dell´Orto |
|
Ignition
|
Contactless |
|
Lubrication system
|
Mix 1:40 |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Clutch
|
Centrifugal Automatic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High tensile steel tubing |
|
Front tire
|
90/65-6.5 |
|
Rear tire
|
110/50-6.5 |
|
Front brakes
|
Single disc |
|
Diameter
|
140 mm (5.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
120 mm (4.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
25.6 kg (56.4 pounds) |
|
Power/weight ratio
|
0.5602 HP/kg |
|
Overall height
|
550 mm (21.7 inches) |
|
Overall length
|
1040 mm (40.9 inches) |
|
Overall width
|
560 mm (22.0 inches) |
|
Fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Other specifications |
|
Color options
|
Black/orange |
|
Starter
|
Kick |
