| Blata's profilation of this bike |
| The frame geometry has been developed using the vast experience of the Champion BLATA racing team riders to give optimum race performance. |
| General moped information |
|---|

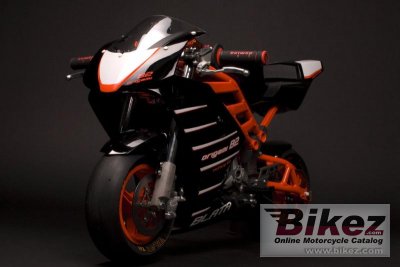

| Model: | Blata Origami B2 Standard |
| Year: | 2009 |
| Category: | Minibike, sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 39.80 ccm (2.43 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 12.87 HP (9.4 kW)) @ 12300 RPM |
| Torque: | 8.10 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 12000 RPM |
| Fuel system: | Carburettor. PHVA 19 Dell´Orto |
| Ignition: | Contactless |
| Lubrication system: | Mix 1:40 |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Clutch: | Centrifugal Automatic |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | High tensile steel tubing |
| Front tyre: | 90/65-6.5 |
| Rear tyre: | 110/50-6.5 |
| Front brakes: | Single disc |
| Front brakes diameter: | 140 mm (5.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 120 mm (4.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 25.6 kg (56.4 pounds) |
| Power/weight ratio: | 0.5027 HP/kg |
| Overall height: | 550 mm (21.7 inches) |
| Overall length: | 1,040 mm (40.9 inches) |
| Fuel capacity: | 1.00 litres (0.26 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
