| Bimota's profilation of this bike |
| From Pierluigi Marconi´s project (named after his own graduation thesis) to the actual Tesi 3D, realised thanks to Andrea Acquaviva and Enrico Borghesan´s work, the philosophy of the project is never changed. |
|
General information |
|
Model
|

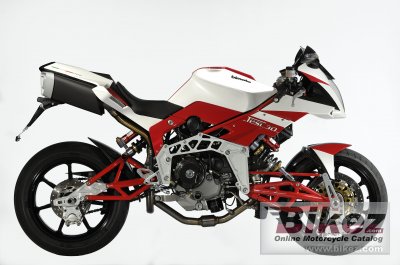

Bimota Tesi 3D E |
|
Model year
|
2013 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1079.0 ccm (65.84 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
90 degree L-Twin |
|
Power output
|
90.0 HP (65.7 kW)) @ 7500 RPM |
|
Torque
|
105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM |
|
Top speed
|
228.0 km/h (141.7 mph) |
|
Max RPM
|
9000 |
|
Compression
|
10.7:1 |
|
Bore x stroke
|
98.0 x 71.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Walbro |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry Clutch, multi-disc |
|
Driveline
|
Primary Drive: 32/59 teeth. Final Drive: 15/40 teeth. |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Avional lateral plates |
|
Rake (fork angle)
|
20.5° |
|
Front suspension
|
Push-rod with preload,extension and compression adjustable monoshock |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
Push-rod with spring preload, extension and compression adjustable monoshock |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. 4-piston |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Forged Aluminium Alloy |
|
Physical measures and capacities |
|
Dry weight
|
167.0 kg (368.2 pounds) |
|
Power/weight ratio
|
0.5389 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
2010 mm (79.1 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Wheelbase
|
1390 mm (54.7 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Reserve fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Starter
|
Electric |
