| Bimota's profilation of this bike |

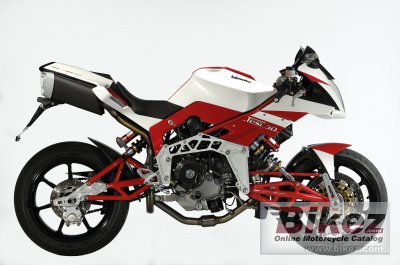

| The TESI 3D is completely unique to all other bikes on the markets. Its revolutionary frame offers an unbeatable riding experience and a new level of vehicle control. The traditional front forks have been replaced by a front wheel swing arm made of latticed Chrome Molybdenum steel steered by a mechanically operated axle. |
| General information |
|---|
| Model: | Bimota Tesi 3D E |
| Year: | 2012 |
| Category: | Sport |
| Rating: | 63.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1079.00 ccm (65.84 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 90 degree L-Twin |
| Max RPM: | 9000 |
| Compression: | 10.5:1 |
| Bore x stroke: | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. Walbro |
| Fuel control: | Desmodromic valve control |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Dry Clutch, multi-disc |
| Driveline: | Primary Drive: 32/59 teeth. Final Drive: 15/40 teeth. |
| Emission details: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Made of two omega shaped lightweight alloy plates |
| Rake (fork angle): | 20.5° |
| Front suspension: | Swing arm. Monoshock, Pull-Rod Extreme Tech, fully adjustable (Preload - External Hydraulic device, Compression, Rebound, |
| Front wheel travel: | 115 mm (4.5 inches) |
| Rear suspension: | Swing arm. Extreme Tech Mono Shock fully adjustable, |
| Rear wheel travel: | 120 mm (4.7 inches) |
| Front tyre: | 120/70-17 |
| Rear tyre: | 180/55-17 |
| Front brakes: | Double disc. 4-piston |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. 2-piston |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Forged Aluminium Alloy |
| Physical measures and capacities |
|---|
| Dry weight: | 167.0 kg (368.2 pounds) |
| Seat height: | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height: | 1,120 mm (44.1 inches) |
| Overall length: | 2,010 mm (79.1 inches) |
| Overall width: | 720 mm (28.3 inches) |
| Wheelbase: | 1,390 mm (54.7 inches) |
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Reserve fuel capacity: | 5.00 litres (1.32 gallons) |
| Other specifications |
|---|
| Color options: | Red/white |
| Starter: | Electric |
| Comments: | Ducati 1100DS engine. |
