| Bimota's profilation of this bike |
| The TESI 3D, like all Bimota motorcycles, embodies all of the character and DNA of a small company that knows how to think big. Bimota is fully committed to the pursuit of excellence and the continuous refinement of our already state-of-the-art technologies. |
|
General information |
|
Model name
|

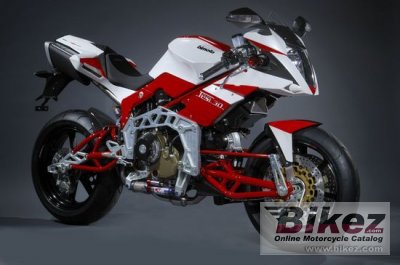

Bimota Tesi 3D |
|
Model year
|
2010 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1079.0 ccm (65.84 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Max RPM
|
9000 |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
98.0 x 71.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Walbro |
|
Fuel control
|
Desmodromic valve control |
|
Lubrication system
|
Wet Sump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry Clutch, multi-disc |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Light alloy |
|
Front suspension
|
Monoshock, Pull-Rod Extreme Tech, fully adjustable (Preload - External Hydraulic device, Compression, Rebound, |
|
Front wheel travel
|
115 mm (4.5 inches) |
|
Rear suspension
|
Extreme Tech Mono Shock fully adjustable, |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
168.0 kg (370.4 pounds) |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1140 mm (44.9 inches) |
|
Overall length
|
2005 mm (78.9 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Wheelbase
|
1390 mm (54.7 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Reserve fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Red/white, carbon black |
|
Starter
|
Electric |
|
Comments
|
Ducati 1100DS engine. |
