General information |
|
Motorcycle name
|

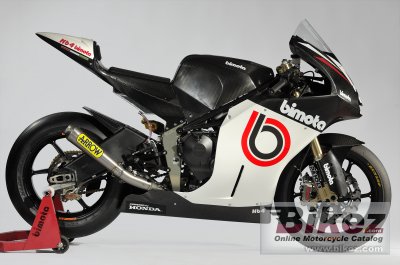

Bimota HB4 |
|
Year of manufacture
|
2012 |
|
Type
|
Prototype / concept model |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
600.0 ccm (36.61 cubic inches) |
|
Type of engine
|
In-line four, four-stroke |
|
Bore x stroke
|
67.0 x 42.5 mm (2.6 x 1.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Paioli da 43 mm |
|
Rear suspension
|
Ohlins TTX |
|
Front tire
|
125/80-17 |
|
Rear tire
|
195/65-17 |
|
Front brakes
|
Double disc. bremo |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Physical measures and capacities |
|
Dry weight
|
135.0 kg (297.6 pounds) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Starter
|
Electric |
