General information |
|
Motorcycle name
|

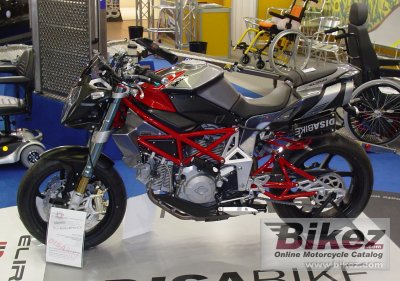

Bimota Disabike |
|
Year
|
2009 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1078.0 ccm (65.78 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
95.0 HP (69.3 kW)) @ 7500 RPM |
|
Torque
|
88.3 Nm (9.0 kgf-m or 65.1 ft.lbs) @ 5500 RPM |
|
Bore x stroke
|
98.0 x 71.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Walbro, 45 mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Oil & air |
|
Gearbox
|
Automatic |
|
Clutch
|
Automatic |
|
Exhaust system
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo steel trellis with aluminium plates |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
100 mm (3.9 inches) |
|
Front suspension
|
Marzocchi upside-down |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Adjustable monoshock |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
170.0 kg (374.8 pounds) |
|
Power/weight ratio
|
0.5588 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1425 mm (56.1 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Intended for riders with reduced mobility. Based on a DB6. |
