General information |
---|

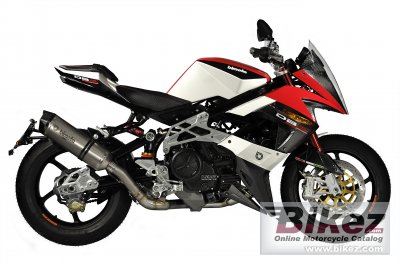

Model | Bimota DB9 Brivido |
Year | 2012 |
Category | Sport |
Rating | 3.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 1198.0 ccm (73.10 cubic inches) |
Engine type | V2, four-stroke |
Power | 162.0 HP (118.2 kW)) @ 9500 RPM |
Torque | 128.0 Nm (13.1 kgf-m or 94.4 ft.lbs) @ 8000 RPM |
Compression | 11.5:1 |
Bore x stroke | 106.0 x 67.9 mm (4.2 x 2.7 inches) |
Valves per cylinder | 4 |
Fuel system | Injection. Walbro electronic injection |
Fuel control | Desmodromic valve control |
Lubrication system | Wet sump |
Cooling system | Liquid |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Wet, multi-plate |
Exhaust system | 2 in 1 in 1, Titanium silencer. |
Chassis, suspension, brakes and wheels |
---|
Frame type | NiCrMo4 and aluminium |
Rake (fork angle) | 25.0° |
Front suspension | Marzocchi USD fork, adjustable |
Rear suspension | Extreme Tech, adjustable |
Front tire | 120/70-17 |
Rear tire | 190/55-17 |
Front brakes | Double disc. 4-Pistons |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc. 2-pistons |
Diameter | 230 mm (9.1 inches) |
Physical measures and capacities |
---|
Dry weight | 177.0 kg (390.2 pounds) |
Power/weight ratio | 0.9153 HP/kg |
Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
Overall height | 1105 mm (43.5 inches) |
Overall length | 2040 mm (80.3 inches) |
Overall width | 730 mm (28.7 inches) |
Wheelbase | 1435 mm (56.5 inches) |
Fuel capacity | 18.00 litres (4.76 US gallons) |
Oil capacity | 3.00 litres (3.17 US quarts) |
Other specifications |
---|
Color options | Red/white/black |
Starter | Electric |
Comments | Ducati engine |
