General information |
---|

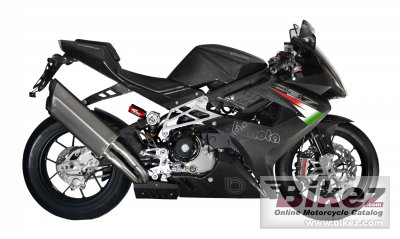

Model | Bimota DB7 Oronero |
Year | 2009 |
Category | Sport |
Price as new | Euro 52000. MSRP depends on country, taxes, accessories, etc. |
Rating | 2.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
---|
Displacement | 1098.0 ccm (67.00 cubic inches) |
Engine type | V2, four-stroke |
Power | 164.0 HP (119.7 kW)) |
Bore x stroke | 104.0 x 64.5 mm (4.1 x 2.5 inches) |
Valves per cylinder | 4 |
Fuel system | Injection. Walbro |
Fuel control | Desmodromic valve control |
Lubrication system | Wet sump |
Cooling system | Liquid |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Dry, multi-disc. Carbon fibre cover. |
Exhaust system | 2 in 1 in 1, inox. |
Chassis, suspension, brakes and wheels |
---|
Rake (fork angle) | 25.0° |
Front suspension | Upside-down Marzocchi Fork Full Adjustable |
Front wheel travel | 120 mm (4.7 inches) |
Rear suspension | Monoshock Extreme Tech Full Adjustable |
Rear wheel travel | 120 mm (4.7 inches) |
Front tire | 120/70-ZR17 |
Rear tire | 180/55-ZR17 |
Front brakes | Double disc. Floating discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc. Bimoto 2-pistons, 2-pads Brembo callipers |
Diameter | 230 mm (9.1 inches) |
Physical measures and capacities |
---|
Dry weight | 164.0 kg (361.6 pounds) |
Power/weight ratio | 1.0000 HP/kg |
Front percentage of weight | 51.0 |
Rear percentage of weight | 49.0 |
Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
Overall height | 1115 mm (43.9 inches) |
Overall length | 2100 mm (82.7 inches) |
Overall width | 700 mm (27.6 inches) |
Ground clearance | 135 mm (5.3 inches) |
Wheelbase | 1435 mm (56.5 inches) |
Fuel capacity | 16.00 litres (4.23 US gallons) |
Reserve fuel capacity | 4.00 litres (1.06 US gallons) |
Other specifications |
---|
Color options | Black/gold |
Comments | 6 kg lower weight than the ordinary DB7 by use of carbon fibre and titanium parts. 1:1 weight to power ratio (kg/bhp). |
