| Bimota's profilation of this bike |

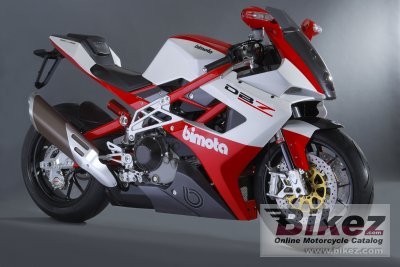

| The DB7 introduces a new hybrid oval tube trellis frame that utilizes lightweight machined plates in its design. The same engineering solution is used in the unique rear swingarm for a package that not only delivers rigidity and predictable handing, but also lends a harmonized technical look to the bike. |
|
General information |
|
Model name
|
Bimota DB7 |
|
Year
|
2009 |
|
Category
|
Sport |
|
Rating
|
2.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1098.0 ccm (67.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
95.0 HP (69.3 kW)) @ 7000 RPM |
|
Torque
|
103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
|
Max RPM
|
10700 |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
104.0 x 64.5 mm (4.1 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Walbro electronic fule injection, 60 mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry, multi-disc |
|
Exhaust system
|
2 in 1 in 1, inox. Euro 3. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
25.0° |
|
Front suspension
|
Upside-down Marzocchi Fork Full Adjustable |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Monoshock Extreme Tech Full Adjustable |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Floating discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bimoto 2-pistons, 2-pads Brembo callipers |
|
Diameter
|
230 mm (9.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
170.0 kg (374.8 pounds) |
|
Power/weight ratio
|
0.5588 HP/kg |
|
Front percentage of weight
|
51.0 |
|
Rear percentage of weight
|
49.0 |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2100 mm (82.7 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1435 mm (56.5 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
