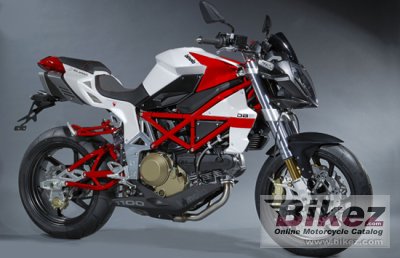

| Bimota's profilation of this bike |
| Bimota presents the new and more aggressive version of our successful naked Delirio. The DB6R is even more agile and lighter than its sibling, and is propelled by the new powerful 1100 Ducati dry clutch engine.
|
|
General information |
|
Motorcycle name
|
Bimota DB6R |
|
Model year
|
2010 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1079.0 ccm (65.84 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Max RPM
|
8500 |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
98.0 x 71.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Walbro |
|
Fuel control
|
Desmodromic valve control |
|
Lubrication system
|
Wet Sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry clutch Multi-disc with hydraulic actuation system |
|
Exhaust system
|
2 in 1 in 2, inox steel |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
50 mm Marzocchi UD fork TiN fully adjustable |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Extreme Tech Monoshock fully adjustable, compression low/high speed |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/70-ZR17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
170.0 kg (374.8 pounds) |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2045 mm (80.5 inches) |
|
Overall width
|
830 mm (32.7 inches) |
|
Ground clearance
|
175 mm (6.9 inches) |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Comments
|
Ducati DS1100 engine. |
