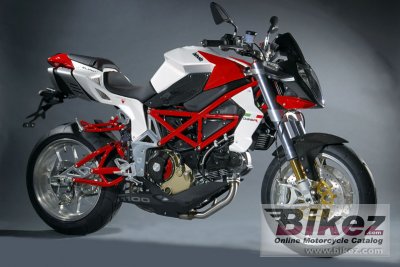

Bimota DB6 R 20112011 Bimota DB6 R specifications, pictures, reviews and rating |
| Bimota's profilation of this bike |
| The DB6R includes many new carbon fiber components including air conveyors for the radiator, fairing sides, belt-covers, clutch cover, front mudguard, plate holder and side covers. |
| General information | |
|---|---|
| Motorcycle name | Bimota DB6 R |
| Year model | 2011 |
| Type | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1079.0 ccm (65.84 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Ducati 1100 DS. Twin cylinder 90°. |
| Maximum RPM | 8500 |
| Compression | 10.5:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Walbro |
| Fuel control | Desmodromic valve control |
| Lubrication system | Wet Sump |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Dry clutch Multi-disc with hydraulic actuation system |
| Driveline | Primary Drive ratio: 33/61. Final Drive ratio: 15/39. |
| Exhaust system | 2 in 1 in 2, inox steel |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 24.0° |
| Front suspension | 50 mm Marzocchi UD fork TiN fully adjustable |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Extreme Tech Monoshock fully adjustable, compression low/high speed |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/70-ZR17 |
| Front brakes | Double disc. Bremo |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Al Alloy |
| Physical measures and capacities | |
| Dry weight | 170.0 kg (374.8 pounds) |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 2045 mm (80.5 inches) |
| Overall width | 830 mm (32.7 inches) |
| Ground clearance | 175 mm (6.9 inches) |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Reserve fuel capacity | 5.00 litres (1.32 US gallons) |
| Other specifications | |
| Color options | Red/white |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Bimota DB6 R discussion group or the general Bimota discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
