| Bimota's profilation of this bike |

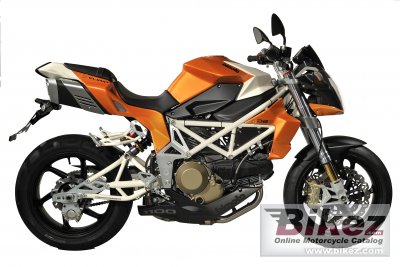

| For the second time in the young history of the new Bimota company, Sergio Robbiano had been the creative head behind a project combining pure esthetics of the motorcycle with the highest standards of functionality: The Bimota DB6 Delirio, a naked bike that parallels the full-faired supersport DB5. |
|
General information |
|
Model name
|
Bimota DB6 Delirio |
|
Year of manufacture
|
2010 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1078.0 ccm (65.78 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
91.0 HP (66.4 kW)) @ 8500 RPM |
|
Torque
|
88.3 Nm (9.0 kgf-m or 65.1 ft.lbs) @ 4500 RPM |
|
Maximum RPM
|
9000 |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
98.0 x 71.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Walbro, 45 mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Lubrication system
|
Wet Sump |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry multi-plate with hydraulic control |
|
Exhaust system
|
Triangle shaped mufflers. Euro 3. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular chrome molybdenum steel trellis with lateral plates in aircraft alloy. |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
100 mm (3.9 inches) |
|
Front suspension
|
50mm Marzocchi upride-down fork with TiN treatment |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Extreme Tech Mono Shock, fully adjustable, straight connection |
|
Rear wheel travel
|
130 mm (5.1 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Bremo |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
177.0 kg (390.2 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1425 mm (56.1 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Red/black, red/white, blue/white, orange/gray |
|
Starter
|
Electric |
|
Comments
|
Ducati engine. |
