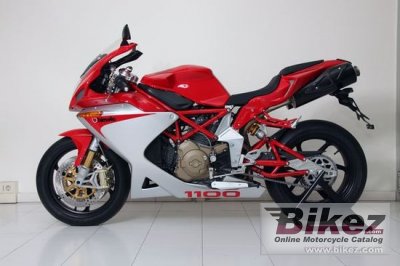

Bimota DB5S 20112011 Bimota DB5S specifications, pictures, reviews and rating |
| Bimota's profilation of this bike |
| The innovative concept behind the tubular composite swing arm, exclusive to Bimota, confirms our commitment to continuous research and development. As introduced first on the DB5 Mille the revolutionary design of the full front fairing leaves the engine completely exposed. |
| General information | |
|---|---|
| Motorcycle name | Bimota DB5S |
| Model year | 2011 |
| Category | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1079.0 ccm (65.84 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Ducati 1100DS eninge. 90 degree L-Twin configuration. |
| Power output | 95.0 HP (69.3 kW)) @ 7000 RPM |
| Torque | 103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Magneti Marelli. Bitron 3.5bar fuel pump, electronic |
| Fuel control | Desmodromic valve control |
| Lubrication system | Wet sump |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet Clutch, multi-disc, hydrualic |
| Exhaust system | 2 in 1 in 2, inox |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo steel tubular trellis |
| Rake (fork angle) | 24.0° |
| Trail | 108 mm (4.3 inches) |
| Front suspension | UD Marzocchi TiN Coated Fork Full Adjustable (Pre-load, Compression, Rebound) |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Monoshock Extreme Tech Full Adjustable (Pre-load -External Hydraulic Device, Compression, Rebound |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc. Floating Discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Brembo, 2-Pistons, 2-Pads Brembo |
| Diameter | 230 mm (9.1 inches) |
| Wheels | Aluminium Alloy |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 189.0 kg (416.7 pounds) |
| Front percentage of weight | 51.0 |
| Rear percentage of weight | 49.0 |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2045 mm (80.5 inches) |
| Ground clearance | 170 mm (6.7 inches) |
| Wheelbase | 1425 mm (56.1 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Reserve fuel capacity | 5.00 litres (1.32 US gallons) |
| Other specifications | |
| Color options | Red/white, yellow/black |
