Bimota DB5S 20102010 Bimota DB5S specifications, pictures, reviews and rating |

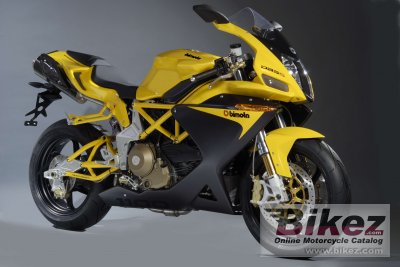

 2010 Bimota DB5S. Picture credits - Bimota. Submit more pictures.
|
| Bimota's profilation of this bike |
| Derived from its predecessor, the award winning DB5 Mille, the tubular steel frame of the DB5S with machined plates in aircraft alloy envelopes the powerful and reliable Ducati 1100 DS engine. |
| General information | |
|---|---|
| Model | Bimota DB5S |
| Year | 2010 |
| Category | Sport |
| Rating | Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 1079.0 ccm (65.84 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 95.0 HP (69.3 kW)) @ 7000 RPM |
| Torque | 103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
| Max RPM | 9000 |
| Compression | 10.5:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Magneti Marelli. Bitron 3.5bar fuel pump, electronic |
| Fuel control | Desmodromic valve control |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet Clutch, multi-disc |
| Exhaust system | 2 in 1 in 2, inox |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo steel tubular trellis |
| Rake (fork angle) | 24.0° |
| Trail | 108 mm (4.3 inches) |
| Front suspension | UD Marzocchi TiN Coated Fork Full Adjustable (Pre-load, Compression, Rebound) |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Monoshock Extreme Tech Full Adjustable (Pre-load -External Hydraulic Device, Compression, Rebound |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc. Floating Discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Brembo, 2-Pistons, 2-Pads Brembo |
| Diameter | 230 mm (9.1 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 189.0 kg (416.7 pounds) |
| Front percentage of weight | 51.0 |
| Rear percentage of weight | 49.0 |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2045 mm (80.5 inches) |
| Ground clearance | 170 mm (6.7 inches) |
| Wheelbase | 1425 mm (56.1 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Reserve fuel capacity | 5.00 litres (1.32 US gallons) |
| Other specifications | |
| Color options | Red/white, yellow/black |
| Starter | Electric |
| Comments | Ducati engine. |
