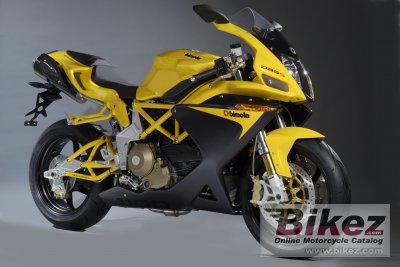

Bimota DB5S 20082008 Bimota DB5S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Bimota DB5S |
| Year | 2008 |
| Category | Sport |
| Rating | 3.2 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1079.0 ccm (65.84 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 95.0 HP (69.3 kW)) @ 7000 RPM |
| Torque | 103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic fule injection-45mm throttle body |
| Fuel control | Desmodromic valve control |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Oil bath multi-plate with hydraulic control |
| Chassis, suspension, brakes and wheels | |
| Front suspension | UD Marzocchi TiN Coated Fork Full Adjustable (Pre-load, Compression, Rebound) |
| Rear suspension | Monoshock Extreme Tech Full Adjustable (Pre-load -External Hydraulic Device, Compression, Rebound |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc. Double Ø320 mm Floating Discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Ø230 mm Disc Brembo, 2-Pistons, 2-Pads Brembo |
| Diameter | 230 mm (9.1 inches) |
| Physical measures and capacities | |
| Dry weight | 185.0 kg (407.9 pounds) |
| Power/weight ratio | 0.5135 HP/kg |
| Front percentage of weight | 51.0 |
| Rear percentage of weight | 49.0 |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2045 mm (80.5 inches) |
| Overall width | 750 mm (29.5 inches) |
| Ground clearance | 170 mm (6.7 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Red/white |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 08 Bimota DB5S discussion group or the general Bimota discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2008 Bimota DB5S discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Bimota bike | |
Offroad capabilities for the 2008 Bimota DB5S:  (44.9 out of 100)Click here for complete rating. |
|
