Bimota DB5R 20082008 Bimota DB5R specifications, pictures, reviews and rating |

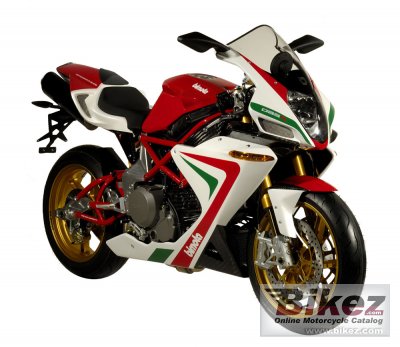

 2008 Bimota DB5R. Picture credits - Bimota. Submit more pictures.
|
|
| General information | |
|---|---|
| Model | Bimota DB5R |
| Year | 2008 |
| Category | Sport |
| Rating | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1078.0 ccm (65.78 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 95.0 HP (69.3 kW)) @ 7000 RPM |
| Torque | 103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
| Compression | 10.1:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic fule injection-45mm throttle body |
| Fuel control | Desmodromic valve control |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Clutch | Clutch type oil bath clutch Multi-disc Actuation system hydraulic |
| Chassis, suspension, brakes and wheels | |
| Front suspension | UD Fork Ohlins TiNFully adjustable Diameter = 43 m |
| Rear suspension | Ohlins Mono Shock, fully adjustable |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Single disc. Double Ø320 mm Brembo disc, 4-pistons, 4-pads ith radial Brembo calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Ø220 mm Brembo disc, 2-pistons, 2-pads with Brembo caliper |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 169.0 kg (372.6 pounds) |
| Power/weight ratio | 0.5621 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 750 mm (29.5 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1425 mm (56.1 inches) |
| Other specifications | |
| Color options | Red/white/green |
| Starter | Electric |
