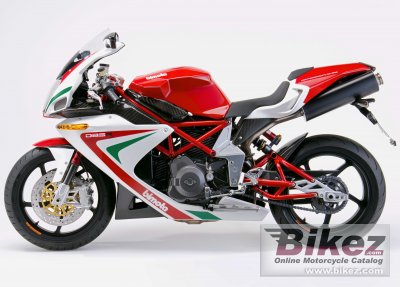

Bimota DB5R 1100 20122012 Bimota DB5R 1100 specifications, pictures, reviews and rating |
| Bimota's profilation of this bike |
| If some motorcycles are fast food, then the Bimota DB5r is 5 star Cuisine. The honest and hard driving motor is archetypal transport of pure highway joy. The 98hp motor mated with top of the range parts are all that is required. |
| General information | |
|---|---|
| Model | Bimota DB5R 1100 |
| Model year | 2012 |
| Category | Sport |
| Rating | 3.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1078.0 ccm (65.78 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Ducati 1100DS engine. L-twin. |
| Power output | 98.0 HP (71.5 kW)) @ 7000 RPM |
| Torque | 103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
| Max RPM | 9000 |
| Compression | 10.1:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Magneti Marelli-45mm throttle body |
| Fuel control | Desmodromic valve control |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Slipper clutch |
| Exhaust system | 2 in 1 in 2, inox |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo steel trellis, carbon fibre. |
| Rake (fork angle) | 24.0° |
| Trail | 100 mm (3.9 inches) |
| Front suspension | 43mm UD Öhlins TIN Coated Fork, fully adjustable (Pre-load, Compression, Rebound) |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Öhlins Monoshock, fully adjustable (Pre-load - External Hydraulic Device, Compression, Rebound) |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-pistons, 2-pads with Brembo caliper |
| Diameter | 230 mm (9.1 inches) |
| Wheels | Forged Alluminium |
| Physical measures and capacities | |
| Dry weight | 169.0 kg (372.6 pounds) |
| Power/weight ratio | 0.5799 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 2050 mm (80.7 inches) |
| Overall width | 830 mm (32.7 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Reserve fuel capacity | 5.00 litres (1.32 US gallons) |
| Other specifications | |
| Color options | Red/white/green |
| Starter | Electric |
