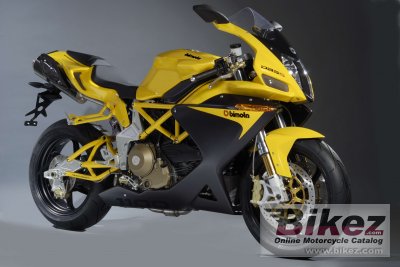

Bimota DB5 S 20092009 Bimota DB5 S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Bimota DB5 S |
| Year of manufacture | 2009 |
| Type | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1079.0 ccm (65.84 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 95.0 HP (69.3 kW)) @ 7000 RPM |
| Torque | 103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Desmodromic valve control |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Dry multi-plate with hydraulic control |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo steel tubular trellis |
| Rake (fork angle) | 24.0° |
| Trail | 108 mm (4.3 inches) |
| Front suspension | UD Marzocchi TiN Coated Fork Full Adjustable (Pre-load, Compression, Rebound) |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Monoshock Extreme Tech Full Adjustable (Pre-load -External Hydraulic Device, Compression, Rebound |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Double disc. Floating Discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Brembo, 2-Pistons, 2-Pads Brembo |
| Diameter | 230 mm (9.1 inches) |
| Physical measures and capacities | |
| Dry weight | 185.0 kg (407.9 pounds) |
| Power/weight ratio | 0.5135 HP/kg |
| Front percentage of weight | 51.0 |
| Rear percentage of weight | 49.0 |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1230 mm (48.4 inches) |
| Overall length | 2045 mm (80.5 inches) |
| Ground clearance | 170 mm (6.7 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Red/white, yellow |
