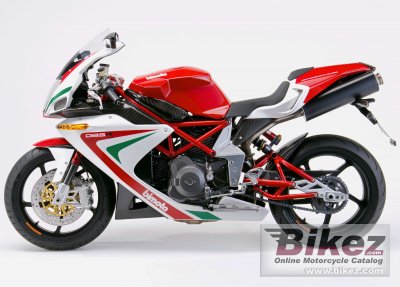

Bimota DB5 RE 20132013 Bimota DB5 RE specifications, pictures, reviews and rating |
| Bimota's profilation of this bike |
| The compact size of the bike brings to the rider both manageability and precision. |
| General information | |
|---|---|
| Model | Bimota DB5 RE |
| Year of manufacture | 2013 |
| Type | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1078.0 ccm (65.78 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Ducati 1100DS engine. L-twin. |
| Output | 98.0 HP (71.5 kW)) @ 8500 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM |
| Top speed | 230.0 km/h (142.9 mph) |
| Compression | 10.7:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Bimota injection |
| Fuel control | Desmodromic valve control |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Dry multiplate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular chrome-molibdenum steel |
| Rake (fork angle) | 24.0° |
| Trail | 100 mm (3.9 inches) |
| Front suspension | Upside-down fully adjustable forks |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Monoshock |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. 2-pistons, Bimota caliper |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Forged Alluminium rims |
| Physical measures and capacities | |
| Dry weight | 169.0 kg (372.6 pounds) |
| Power/weight ratio | 0.5799 HP/kg |
| Seat height | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 2050 mm (80.7 inches) |
| Overall width | 830 mm (32.7 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Red/white/green |
