| General information |
|---|

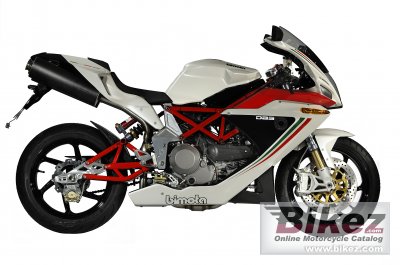

| Model: | Bimota DB5 E Desiderio |
| Year: | 2012 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1078.00 ccm (65.78 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Ducati 1100DS engine. L-twin. |
| Power: | 98.00 HP (71.5 kW)) @ 7500 RPM |
| Torque: | 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM |
| Compression: | 10.7:1 |
| Bore x stroke: | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. Magneti Marelli-45mm throttle body |
| Fuel control: | Desmodromic valve control |
| Ignition: | Walbro |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Dry multiplate |
| Emission details: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | CrMo steel trellis, carbon fibre. |
| Rake (fork angle): | 24.0° |
| Trail: | 100 mm (3.9 inches) |
| Front suspension: | Marzocchi |
| Front wheel travel: | 120 mm (4.7 inches) |
| Rear suspension: | Öhlins Monoshock |
| Rear wheel travel: | 120 mm (4.7 inches) |
| Front tyre: | 120/70-17 |
| Rear tyre: | 180/55-17 |
| Front brakes: | Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. 2-pistons, Bimota caliper |
| Rear brakes diameter: | 230 mm (9.1 inches) |
| Wheels: | Forged Alluminium rims, golden |
| Physical measures and capacities |
|---|
| Dry weight: | 169.0 kg (372.6 pounds) |
| Power/weight ratio: | 0.5799 HP/kg |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,110 mm (43.7 inches) |
| Overall length: | 2,050 mm (80.7 inches) |
| Overall width: | 830 mm (32.7 inches) |
| Ground clearance: | 130 mm (5.1 inches) |
| Wheelbase: | 1,430 mm (56.3 inches) |
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Other specifications |
|---|
| Color options: | Red/white/green |
| Starter: | Electric |
| Comments: | Windshield |
