Bimota DB10 Bimotard 20132013 Bimota DB10 Bimotard specifications, pictures, reviews and rating |

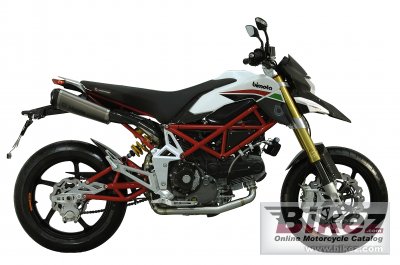

2013 Bimota DB10 Bimotard. Image credits - Bimota.
| Bimota's profilation of this bike |
| Bends are never long enough The right bike born to devour the road bend after bend and to satisfy the most ravenous rider; and when the adrenalin trip subsides one’s thoughts are transfixed at the finer details of this Carbon clad Bimota where the combination of Italian design and engineers passion stands out above the crowd. |
| General information | |
|---|---|
| Motorcycle name | Bimota DB10 Bimotard |
| Year of manufacture | 2013 |
| Type | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1078.0 ccm (65.78 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Ducati 1100DS engine. L-twin. |
| Output | 98.0 HP (71.5 kW)) @ 7500 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM |
| Top speed | 220.0 km/h (136.7 mph) |
| Compression | 10.7:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Magneti Marelli-45mm throttle body |
| Fuel control | Desmodromic valve control |
| Ignition | Walbro |
| Lubrication system | Wet sump |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Dry multidic |
| Emission details | Euro 3 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular chrome-molibdenum steel |
| Front suspension | 50mm upside-down fully adjustable forks |
| Front wheel travel | 165 mm (6.5 inches) |
| Rear suspension | Preload-fully adjustable top and lower speed monoshock |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-pistons, |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Forged Alluminium |
| Physical measures and capacities | |
| Dry weight | 168.0 kg (370.4 pounds) |
| Power/weight ratio | 0.5833 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height | 1330 mm (52.4 inches) |
| Overall length | 2045 mm (80.5 inches) |
| Overall width | 850 mm (33.5 inches) |
| Wheelbase | 1465 mm (57.7 inches) |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Other specifications | |
| Color options | Red/white/green |
| Starter | Electric |
