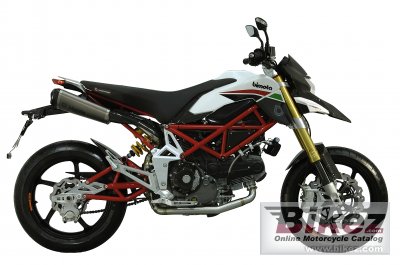

Bimota DB10 Bimotard 20122012 Bimota DB10 Bimotard specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Bimota DB10 Bimotard |
| Model year | 2012 |
| Category | Sport |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 1078.0 ccm (65.78 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Ducati 1100DS engine. L-twin. |
| Power output | 98.0 HP (71.5 kW)) @ 7500 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5500 RPM |
| Top speed | 220.0 km/h (136.7 mph) |
| Compression | 10.7:1 |
| Bore x stroke | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Magneti Marelli-45mm throttle body |
| Fuel control | Desmodromic valve control |
| Ignition | Walbro |
| Lubrication system | Wet sump |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Dry multidic |
| Emission details | Euro 3 |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 43mm telescopic fork |
| Front wheel travel | 165 mm (6.5 inches) |
| Rear suspension | Monoshock, fully adjustable |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-17 |
| Rear tire | 180/55-17 |
| Front brakes | Single disc. Brembo, 4-pistons, 4-pads with radial Brembo calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-pistons, |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Forged Alluminium |
| Physical measures and capacities | |
| Dry weight | 168.0 kg (370.4 pounds) |
| Power/weight ratio | 0.5833 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height | 1330 mm (52.4 inches) |
| Overall length | 2045 mm (80.5 inches) |
| Overall width | 850 mm (33.5 inches) |
| Wheelbase | 1465 mm (57.7 inches) |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Other specifications | |
| Color options | Red/white/green |
| Starter | Electric |
