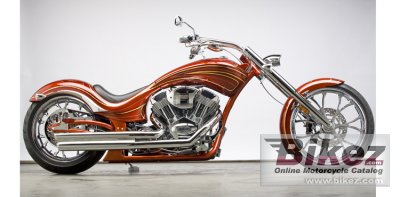

Big Dog Wolf 20102010 Big Dog Wolf specifications, pictures, reviews and rating |
| Big Dog's profilation of this bike |
| Performance and style redefined. |
| General information | |
|---|---|
| Model | Big Dog Wolf |
| Year | 2010 |
| Category | Custom / cruiser |
| Price as new | US$ 35900. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 1976.0 ccm (120.58 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.9:1 |
| Bore x stroke | 108.0 x 108.0 mm (4.3 x 4.3 inches) |
| Fuel system | Injection. Electronic Fuel Injection (CLEFI) |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Electronic Single Fire |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 40.0° |
| Trail | 149 mm (5.9 inches) |
| Front suspension | 41 mm Telescopic Sleeved |
| Rear suspension | Swing arm |
| Front tire | 130/60-R23 |
| Rear tire | 220/50-R20 |
| Front brakes | Single disc. 4-piston diff bore |
| Rear brakes | Single disc. 4-piston drive side |
| Physical measures and capacities | |
| Dry weight | 349.0 kg (769.4 pounds) |
| Seat height | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Overall length | 2844 mm (112.0 inches) |
| Ground clearance | 98 mm (3.9 inches) |
| Wheelbase | 2120 mm (83.5 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
| Oil capacity | 3.10 litres (3.28 US quarts) |
| Other specifications | |
| Color options | Orange |
| Starter | Electric |
| Comments | 56 degree X-Wedge engine. Drive Side Brake. 45-Degree Total Rake |
