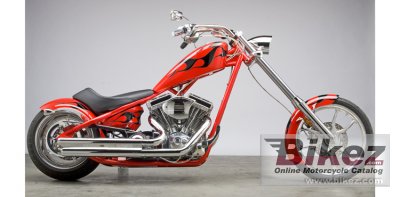

Big Dog Ridgeback 20102010 Big Dog Ridgeback specifications, pictures, reviews and rating |
| Big Dog's profilation of this bike |
| Outrageous hardcore design. Massive 330 Rear Tire. |
| General information | |
|---|---|
| Model | Big Dog Ridgeback |
| Model year | 2010 |
| Category | Custom / cruiser |
| Price as new | US$ 27900. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 1917.0 ccm (116.98 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.6:1 |
| Bore x stroke | 104.8 x 111.1 mm (4.1 x 4.4 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 39.0° |
| Front suspension | 41 mm telescopic |
| Front tire | MH90-21 |
| Rear tire | 330/30-R17 |
| Front brakes | Single disc. 4-piston diff bore |
| Rear brakes | Single disc. 4-piston |
| Physical measures and capacities | |
| Dry weight | 308.0 kg (679.0 pounds) |
| Seat height | 616 mm (24.3 inches) If adjustable, lowest setting. |
| Overall length | 2718 mm (107.0 inches) |
| Ground clearance | 114 mm (4.5 inches) |
| Wheelbase | 2096 mm (82.5 inches) |
| Fuel capacity | 16.60 litres (4.39 US gallons) |
| Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Red/black |
| Comments | 4´ Backbone Stretch. 8´ Down Tube Stretch. 42-Degree Total Rake. |
