| Big Dog's profilation of this bike |
| Cutting-edge style. Distinctive tall wheels. |
| General information |
|---|

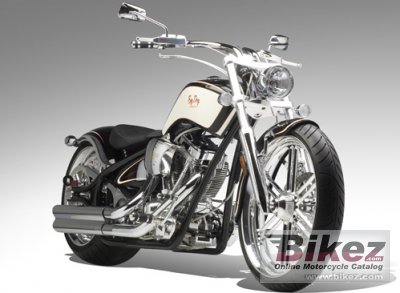

| Model: | Big Dog Pitbull |
| Year: | 2011 |
| Category: | Custom / cruiser |
| Price as new: | US$ 26900. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1916.0 ccm (116.91 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 45 degree V-Twin |
| Compression: | 9.6:1 |
| Bore x stroke: | 104.8 x 111.1 mm (4.1 x 4.4 inches) |
| Fuel system: | Carburettor. Optional CLEFI |
| Fuel control: | Overhead Valves (OHV) |
| Ignition: | Electronic Single Fire |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Driveline: | Comp/BalancePrimary drive |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Rigid frame with spring-seat comfort. |
| Rake (fork angle): | 33.0° |
| Trail: | 114 mm (4.5 inches) |
| Front suspension: | 41mm Telescopic |
| Front tire: | 130/60-R23 |
| Rear tire: | 280/40-R20 |
| Front brakes: | Single disc. 4-piston diff bore |
| Rear brakes: | Single disc. 4-piston |
| Physical measures and capacities |
|---|
| Dry weight: | 313.0 kg (690.0 pounds) |
| Seat height: | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Overall length: | 2586 mm (101.8 inches) |
| Ground clearance: | 120 mm (4.7 inches) |
| Wheelbase: | 1857 mm (73.1 inches) |
| Fuel capacity: | 17.41 litres (4.60 gallons) |
| Oil capacity: | 3.50 litres (3.7 US quarts) |
| Other specifications |
|---|
| Color options: | White/black |
| Starter: | Electric |
| Factory warranty: | 24 months |
