| Big Dog's profilation of this bike |
| Award-winning style. |
|
General information |
|
Model name
|

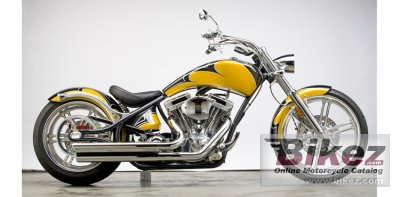

Big Dog Pitbull |
|
Year
|
2010 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 26900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1916.0 ccm (116.91 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
104.8 x 111.1 mm (4.1 x 4.4 inches) |
|
Fuel system
|
Carburettor. Optional CLEFI |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Electronic Single Fire |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
33.0° |
|
Trail
|
114 mm (4.5 inches) |
|
Front suspension
|
41mm Telescopic |
|
Rear suspension
|
Rigid |
|
Front tire
|
130/60-R23 |
|
Rear tire
|
280/40-R20 |
|
Front brakes
|
Single disc. 4-piston diff bore |
|
Rear brakes
|
Single disc. 4-piston |
|
Physical measures and capacities |
|
Dry weight
|
313.0 kg (690.0 pounds) |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2586 mm (101.8 inches) |
|
Ground clearance
|
120 mm (4.7 inches) |
|
Wheelbase
|
1857 mm (73.1 inches) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Color options
|
Yellow/black |
|
Starter
|
Electric |
|
Comments
|
Distinctive 4.6-Gallon Tank. 33-Degree Total Rake |
