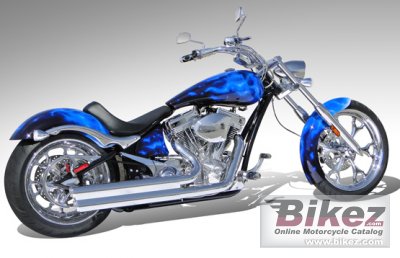

| Big Dog's profilation of this bike |
| Curved dual downtubes. Super fat 300 rear tyre. |
|
General information |
|
Motorcycle name
|
Big Dog Mastiff |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 28900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1917.0 ccm (116.98 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
104.0 x 111.1 mm (4.1 x 4.4 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
6-Speed BDM Balance Drive. |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
39.0° |
|
Trail
|
122 mm (4.8 inches) |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Hidden shocks |
|
Front tire
|
MH120-21 |
|
Rear tire
|
300/35-18 |
|
Front brakes
|
Single disc. 4-piston diff bore |
|
Rear brakes
|
Single disc. 4-piston |
|
Physical measures and capacities |
|
Dry weight
|
321.0 kg (707.7 pounds) |
|
Seat height
|
616 mm (24.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2616 mm (103.0 inches) |
|
Ground clearance
|
102 mm (4.0 inches) |
|
Wheelbase
|
1969 mm (77.5 inches) |
|
Fuel capacity
|
17.40 litres (4.60 US gallons) |
|
Reserve fuel capacity
|
2.70 litres (0.71 US gallons) |
|
Oil capacity
|
2.70 litres (2.85 US quarts) |
|
Other specifications |
|
Color options
|
Blue |
|
Starter
|
Electric |
|
Factory warranty
|
2 year |
|
Comments
|
6ยด Backbone Stretch. 42-Degree Total Rake. |
