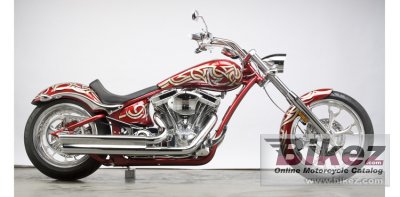

Big Dog Mastiff 20102010 Big Dog Mastiff specifications, pictures, reviews and rating |
| Big Dog's profilation of this bike |
| Proven ProStreet. Long and Low. |
| General information | |
|---|---|
| Model | Big Dog Mastiff |
| Year model | 2010 |
| Type | Custom / cruiser |
| Price as new | US$ 27900. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1917.0 ccm (116.98 cubic inches) |
| Type of engine | V2, four-stroke |
| Compression | 9.6:1 |
| Bore x stroke | 104.0 x 111.1 mm (4.1 x 4.4 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Valves (OHV) |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 39.0° |
| Trail | 122 mm (4.8 inches) |
| Front suspension | Telescopic fork |
| Front tire | MH120-21 |
| Rear tire | 300/35-18 |
| Front brakes | Single disc. 4-piston diff bore |
| Rear brakes | Single disc. 4-piston |
| Physical measures and capacities | |
| Dry weight | 321.0 kg (707.7 pounds) |
| Seat height | 616 mm (24.3 inches) If adjustable, lowest setting. |
| Overall length | 2616 mm (103.0 inches) |
| Ground clearance | 102 mm (4.0 inches) |
| Wheelbase | 1969 mm (77.5 inches) |
| Fuel capacity | 17.40 litres (4.60 US gallons) |
| Reserve fuel capacity | 2.70 litres (0.71 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Red/white |
| Starter | Electric |
| Comments | 6-Speed BDM Balance Drive. 6´ Backbone Stretch. 42-Degree Total Rake. Curved Dual Down Tubes. |
