| Big Dog's profilation of this bike |
| Fat 250 rear tyre |
| General information |
|---|

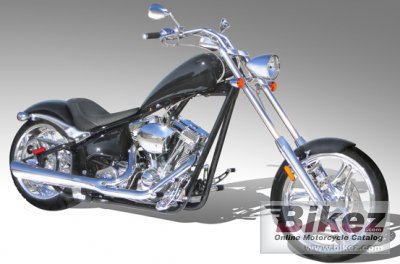

| Model: | Big Dog K-9 250 |
| Year: | 2011 |
| Category: | Custom / cruiser |
| Rating: | 61.3 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 22595. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1819.08 ccm (111.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 45 degree V-Twin |
| Compression: | 9.7:1 |
| Bore x stroke: | 104.8 x 111.1 mm (4.1 x 4.4 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Valves (OHV) |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Driveline: | 6-speed direct drive. Chain primary drive - Spring Compensated |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 42.0° |
| Trail: | 119 mm (4.7 inches) |
| Front suspension: | Telescopic fork |
| Front tyre: | MH90-21 |
| Rear tyre: | 250/40-R18 |
| Front brakes: | Single disc. 4-piston diff bore |
| Rear brakes: | Single disc. 4-piston |
| Physical measures and capacities |
|---|
| Dry weight: | 303.0 kg (668.0 pounds) |
| Seat height: | 622 mm (24.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,667 mm (105.0 inches) |
| Ground clearance: | 114 mm (4.5 inches) |
| Wheelbase: | 1,981 mm (78.0 inches) |
| Fuel capacity: | 16.60 litres (4.39 gallons) |
| Reserve fuel capacity: | 1.50 litres (0.40 gallons) |
| Oil capacity: | 2.80 litres (0.18 quarts) |
| Other specifications |
|---|
| Color options: | Black |
| Starter: | Electric |
| Electrical: | 310 CCA/Sealed AGM Battery. 32 Amp charging output. |
| Factory warranty: | 24 months unlimited milage |
| Further information |
|---|
| Insurance costs | Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
|
| Parts finder |
Chaparral provides online schematics & OEM parts for the US.
Motorcycle Superstore provides an easy-to-use parts finder. Ships to the US, Canada, UK and Australia.
MotoSport.com ships motorcycle parts and accessories to most countries.
Sixity.com has low prices and free shipping on ATV and motorcycle parts to the US.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Customizing | Aftermarked parts at CruiserCustomizing.com . |
| Ask questions | Join the 11 Big Dog K-9 250 discussion group or the general Big Dog discussion group. |
| Loans, tests, etc | Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Big Dog bike
|
Racing track capabilities for the 2011 Big Dog K-9 250:
 (50.1 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
