| Big Dog's profilation of this bike |
| Award-winning chopper design. |
|
General information |
|
Motorcycle name
|

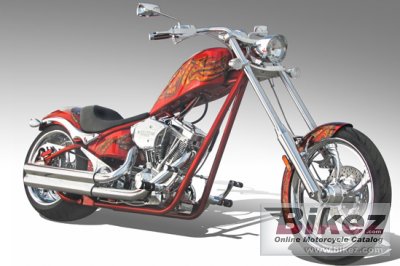

Big Dog K-9 |
|
Model year
|
2011 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 29900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1917.0 ccm (116.98 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
45 degree V-Twin |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
104.8 x 111.1 mm (4.1 x 4.4 inches) |
|
Fuel system
|
Carburettor. Optional CLEFI injection. |
|
Fuel control
|
Overhead Valves (OHV) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
39.0° |
|
Trail
|
111 mm (4.4 inches) |
|
Front suspension
|
41 mm Telescopic fork |
|
Front tire
|
MH90-21 |
|
Rear tire
|
300/35-R18 |
|
Front brakes
|
Single disc. 4-piston diff bore |
|
Rear brakes
|
Single disc. 4-piston |
|
Physical measures and capacities |
|
Dry weight
|
318.0 kg (701.1 pounds) |
|
Seat height
|
616 mm (24.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2743 mm (108.0 inches) |
|
Ground clearance
|
102 mm (4.0 inches) |
|
Wheelbase
|
2083 mm (82.0 inches) |
|
Fuel capacity
|
16.60 litres (4.39 US gallons) |
|
Reserve fuel capacity
|
1.50 litres (0.40 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric |
|
Electrical
|
310 CCA/Sealed AGM Battery |
|
Factory warranty
|
24 months |
|
Comments
|
Smooth-Riding Hidden Shocks. 4´ Backbone Stretch/8´ Down Tube Stretch. 42-Degree Total Rake. |
