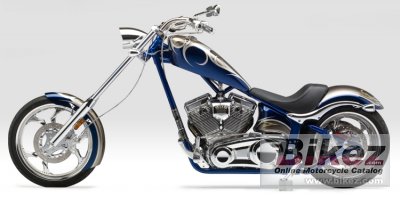

| Big Dog's profilation of this bike |
| Award-Winning Chopper Design. |
|
General information |
|
Motorcycle name
|
Big Dog K-9 |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1917.0 ccm (116.98 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
9.6:1 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Electronic Single Fire |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
39.0° |
|
Trail
|
110 mm (4.4 inches) |
|
Front suspension
|
41 mm Telescopic |
|
Front tire
|
MH90-21 |
|
Rear tire
|
300/35-18 |
|
Front brakes
|
Single disc. 4-piston |
|
Rear brakes
|
Single disc. 4-piston |
|
Physical measures and capacities |
|
Dry weight
|
318.0 kg (701.1 pounds) |
|
Seat height
|
616 mm (24.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2743 mm (108.0 inches) |
|
Ground clearance
|
115 mm (4.5 inches) |
|
Wheelbase
|
2083 mm (82.0 inches) |
|
Fuel capacity
|
16.65 litres (4.40 US gallons) |
|
Reserve fuel capacity
|
1.51 litres (0.40 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
