| General information |
|---|

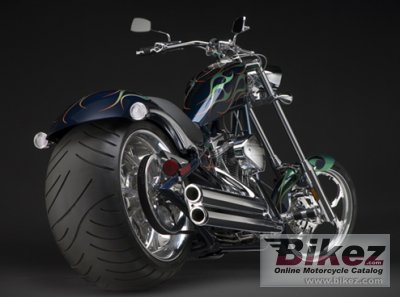

| Model | Big Dog K-9 |
| Year | 2008 |
| Category | Custom / cruiser |
| Rating | 3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 117.0 ccm (7.14 cubic inches) |
| Engine type | V2, four-stroke |
| Fuel system | Carburettor. Optional injection (EFI). |
| Fuel control | Overhead Valves (OHV) |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle) | 39.0° |
| Trail | 110 mm (4.4 inches) |
| Front tire | MH90-21 |
| Rear tire | 300/35-18 |
| Front brakes | Single disc. 4-piston |
| Rear brakes | Single disc. 4-piston |
| Physical measures and capacities |
|---|
| Dry weight | 318.0 kg (701.0 pounds) |
| Seat height | 616 mm (24.3 inches) If adjustable, lowest setting. |
| Overall length | 2743 mm (108.0 inches) |
| Ground clearance | 115 mm (4.5 inches) |
| Wheelbase | 2083 mm (82.0 inches) |
| Fuel capacity | 16.65 litres (4.40 US gallons) |
| Reserve fuel capacity | 1.51 litres (0.40 US gallons) |
| Other specifications |
|---|
