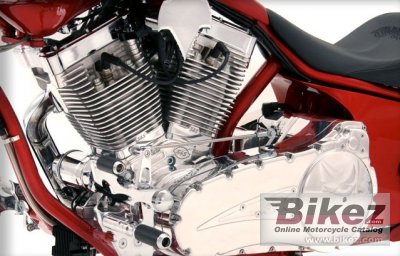

2009 Big Bear Choppers Sled ProStreet 114 X-Wedge. Picture credits - Big Bear Choppers.
Submit more pictures.
|
|
| Big Bear Choppers' profilation of this bike |
| She’s loaded with patented chassis design features to help protect your Sled from being copied by the other guys. The Sled ProStreet a perfect blend of design, ride comfort, reliability and price. |
|
General information |
|
Model name
|
Big Bear Choppers Sled ProStreet 114 X-Wedge |
|
Year
|
2009 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 35400. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1868.2 ccm (114.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
97.0 HP (70.8 kW)) |
|
Torque
|
153.2 Nm (15.6 kgf-m or 113.0 ft.lbs) |
|
Bore x stroke
|
104.8 x 108.0 mm (4.1 x 4.3 inches) |
|
Lubrication system
|
S and S High volume oil pump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
40.0° |
|
Trail
|
95 mm (3.8 inches) |
|
Front suspension
|
BBC Smooth Mount Hidden Axle |
|
Rear suspension
|
Progressive |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
90/80-21 |
|
Rear tire
|
300/80-18 |
|
Front brakes
|
Single disc. P.M. 4-piston calipers |
|
Rear brakes
|
Single disc. BBC P.M. 4-piston caliper BrakeDrive system |
|
Physical measures and capacities |
|
Dry weight
|
317.5 kg (700.0 pounds) |
|
Power/weight ratio
|
0.3055 HP/kg |
|
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2870 mm (113.0 inches) |
|
Wheelbase
|
2184 mm (86.0 inches) |
|
Fuel capacity
|
14.66 litres (3.87 US gallons) |
|
Other specifications |
|
Color options
|
Gross Black, satin black, charcoal metallic, silver, black cherry, candy red, firecracker red, orange, electric blue. |
|
Comments
|
Model also called BBC Sled ProStreet 114 SMOOTH™ EFI X-Wedge. Various wheel and paint scheme options. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Big Bear Choppers Sled ProStreet 114 X-Wedge discussion group or the general Big Bear Choppers discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
