General information |
Motorcycle name
|

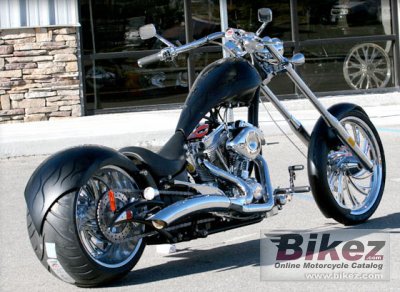

Big Bear Choppers Sled 114 X-Wedge EFI |
Year model
|
2010 |
Type
|
Custom / cruiser |
Price as new | US$ 35400. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Engine size
|
1868.2 ccm (114.00 cubic inches) |
Type of engine
|
V2, four-stroke |
Effect
|
97.0 HP (70.8 kW)) |
Torque
|
153.2 Nm (15.6 kgf-m or 113.0 ft.lbs) |
Bore x stroke
|
104.8 x 108.0 mm (4.1 x 4.3 inches) |
Fuel system
|
Injection. S and S Closed-Loop Electronic Fuel Injection |
Lubrication system
|
S and S Dual Gerotor oil pump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Exhaust system
|
Chrome Radius Tuned Exhaust |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
40.0° |
Trail
|
95 mm (3.8 inches) |
Front suspension
|
BBC Smooth Mount Hidden Axle |
Rear suspension
|
Progressive |
Rear wheel travel
|
76 mm (3.0 inches) |
Front tire
|
90/80-21 |
Rear tire
|
300/80-18 |
Front brakes
|
Single disc. P.M. 4-piston calipers |
Rear brakes
|
Single disc. BBC P.M. 4-piston calipers |
Physical measures and capacities |
Dry weight
|
317.5 kg (700.0 pounds) |
Power/weight ratio
|
0.3055 HP/kg |
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
Overall length
|
2921 mm (115.0 inches) |
Wheelbase
|
2235 mm (88.0 inches) |
Fuel capacity
|
12.30 litres (3.25 US gallons) |
Other specifications |
Color options
|
Gross Black, satin black, charcoal, silver, black cherry, candy red, firecracker red, orange, blue, white. |
Starter
|
Electric |
Comments
|
Model also called BBC Sled Chopper 114 SMOOTHâ„¢ EFI X-Wedge. |
